Work Device Control Unit

FSC01-01 is an electronic control unit designed to achieve intelligent control of construction machinery. The controller features a high-performance 32-bit microprocessor with a clock frequency of 168MHz and parallel processing capabilities. It processes switch information with a range of 0-42V/DC, and the resistance input detection range of 10-40000Ω allows direct connection of temperature sensors. All input interfaces are protected to prevent overvoltage and electrical interference. Power input is monitored to detect cable breakage. The proportional electromagnetic output for current control is pulse width modulated (PWM) and compensates for temperature and voltage fluctuations to ensure high accuracy and minimal lag. The switch outputs are designed for direct on/off control of relays and switching solenoids. Additionally, the outputs integrate voltage and current monitoring functions.

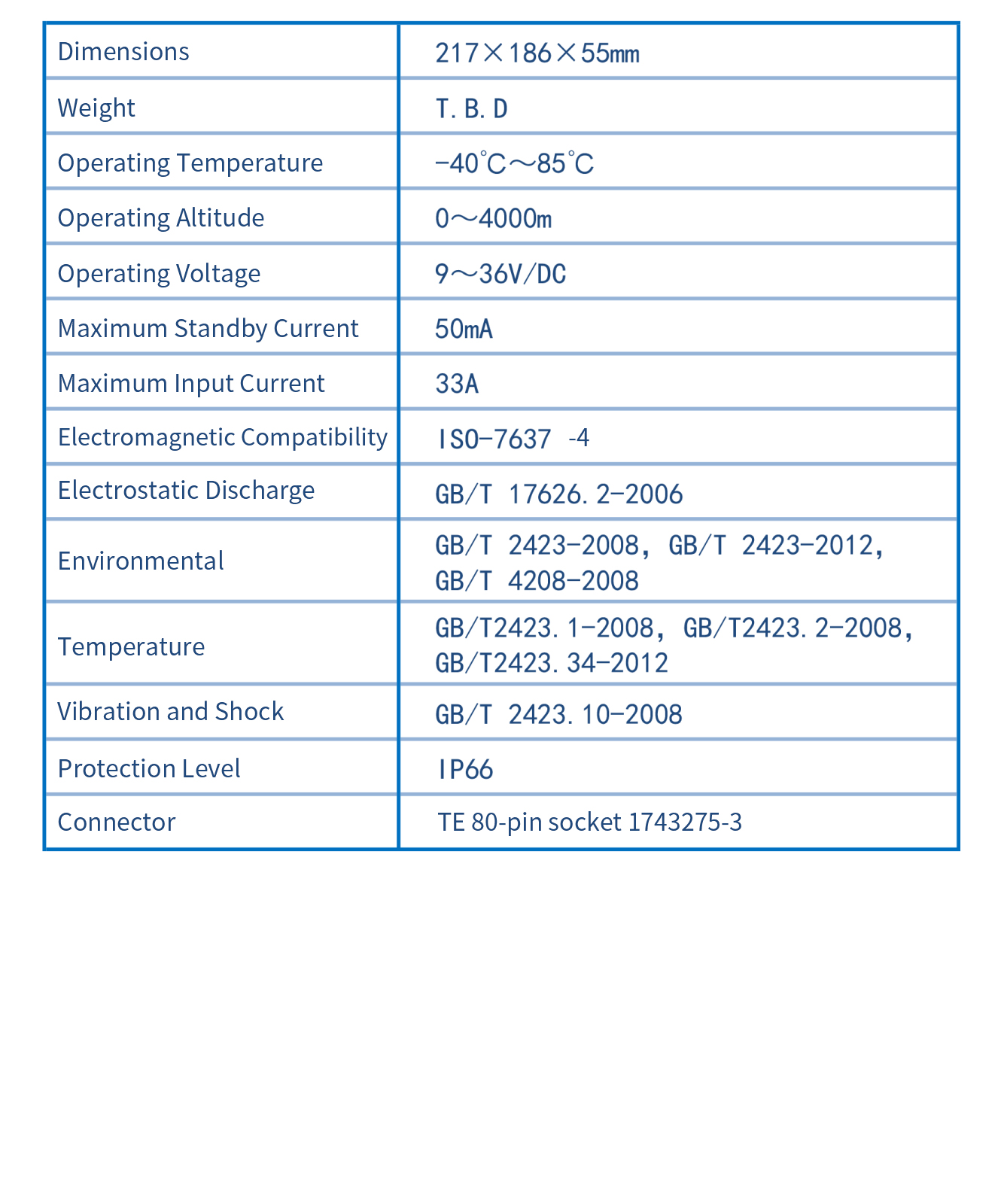

  • Specifications
  • Performance
  • Application

Short circuit protection is available for all signal lines.

? Reverse power protection.

? Support remote program upgrade.

? 1 RS232 interface.

? 5 RS485 interfaces.

? 2 CAN interfaces, with terminal resistor configuration through software.

? 8 channels of 2A PWM output with current feedback.

? 8 channels of 2A switch output.

? 16 channels of digital input, with configurable polarity.

? 8 channels of PWM input.

? 8 channels of analog input, configurable as 0-5V, 4-20mA, or resistance detection through software.

? 12V DC power supply output, maximum current 0.5A.

? 5V DC power supply output, maximum current 0.2A.
